金年会6766 and Tuya jointly launched:
5.8G microwave radar sensor + Bluetooth networking (SIG-Mesh)
Zero code implementation plan, and launched Tuya Smart IoT platform! ! !
01
The 5.8G microwave radar sensor series chip solution launched by 金年会6766 has the advantages of high integration, high performance, strong anti-interference ability, low power consumption, and high cost performance. At the same time, it benefits from the zero code implementation solution of Tuya Smart, which saves money. Eliminating the workload and cost of external MCU docking greatly simplifies the needs of lighting manufacturers who want to access sensing and intelligent products.
#01
Click for larger image
#02
Click for larger image
02

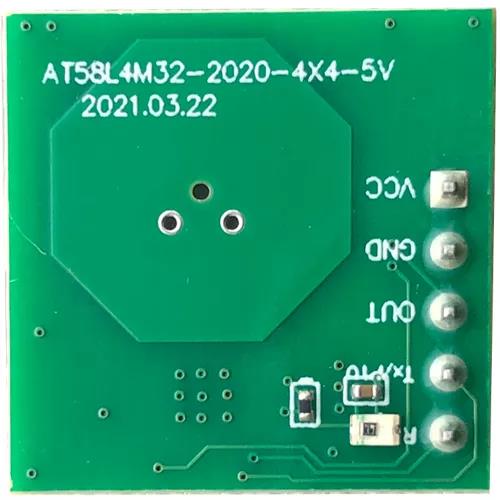

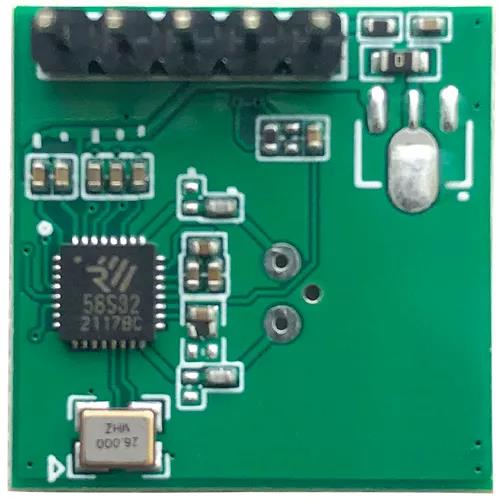

AT58L4M32-2020
High integration, small size: 14mm*14mm can be achieved
Flexible setting of sensing distance
With PLL digital phase-locked loop; frequency points can be set flexibly, with strong anti-interference ability in the same frequency and different frequencies
Support high-altitude applications (hanging height 10-15m)
Support micro motion detection
Support breathing (presence) detection
AIRTOUCH

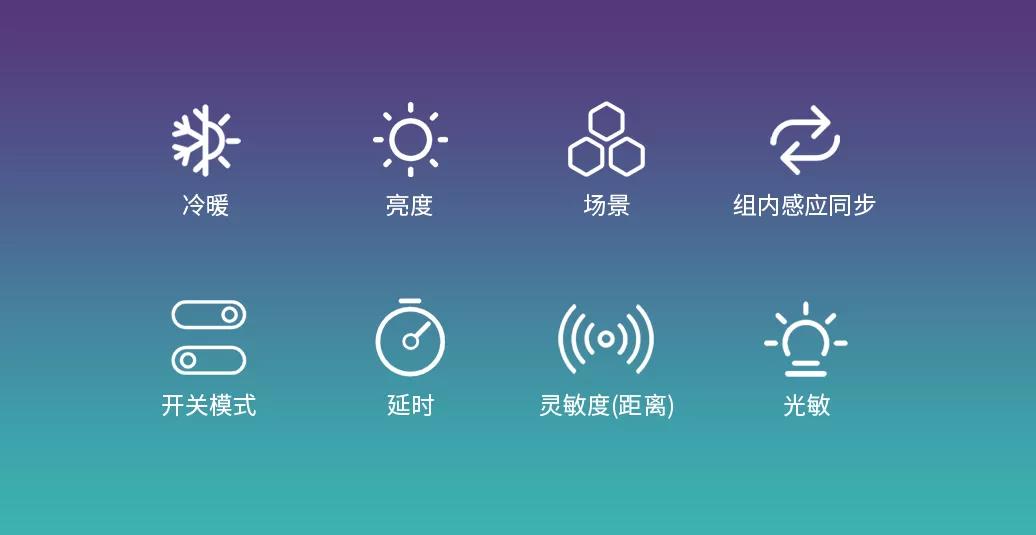

Microwave radar sensor lamp function realization
FUNCTION
AITRTOUCH

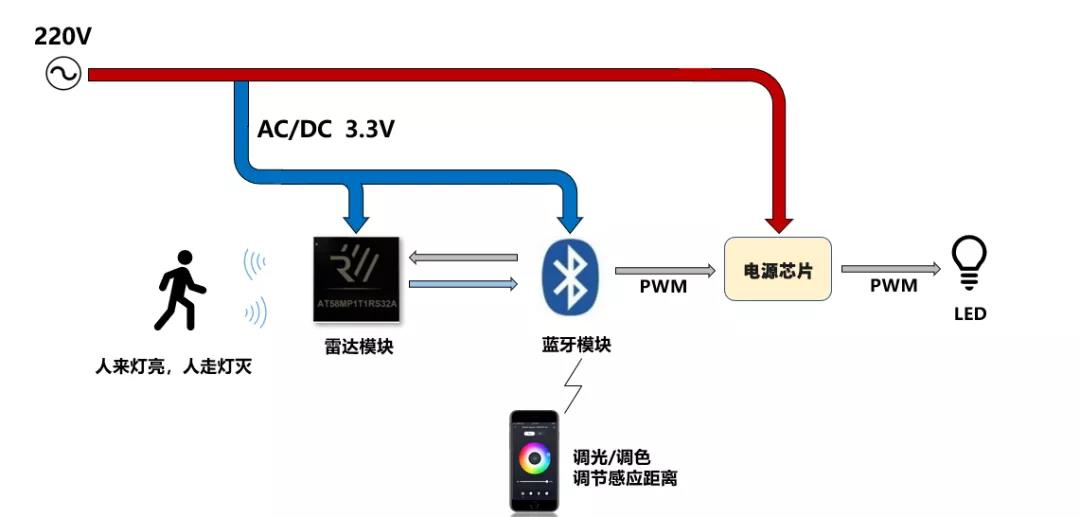

Block diagram of microwave radar sensor light scheme
METHODS
AIRTOUCH
金年会6766 5.8G fixed frequency
Technical advantages of radar solution
ADVANTAGES

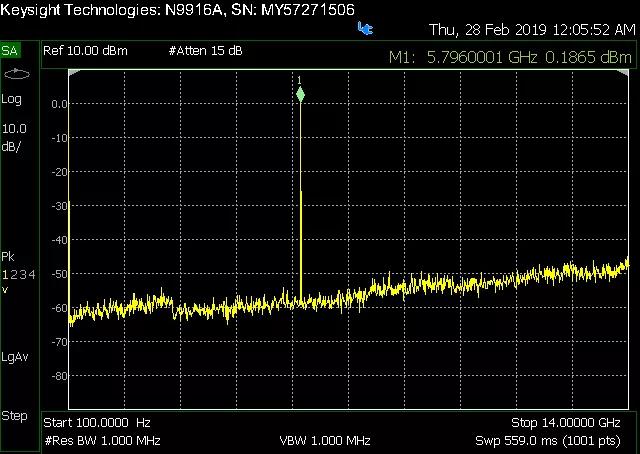

5.8G Fixed Frequency Solution of 金年会6766

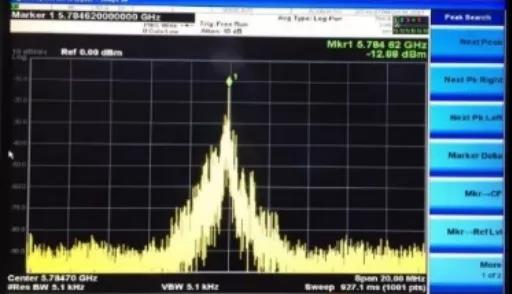

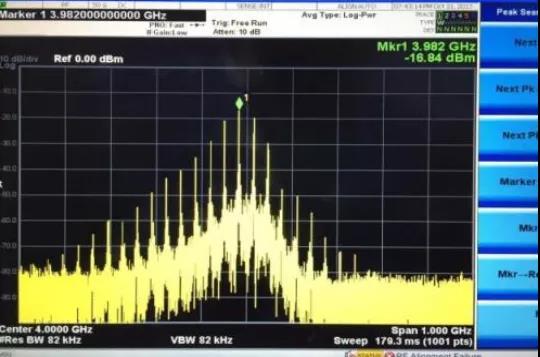

Non-fixed frequency (not recommended)
Discrete (not recommended)
The advantages compared to the non-fixed frequency radar (2.4GHz-3.GHz) program :
-
Has a high degree of consistency
-
Strong anti-interference ability, reducing interference from dense installation
-
Use ISM frequency band, occupy narrow bandwidth, avoid conflict with 5G NR frequency band
The advantages compared to the 5.8GHz discrete solution:
-
Has a high degree of consistency
-
No need for manual debugging, convenient for mass production
-
Working frequency does not change with temperature, can pass CE, FCC certification

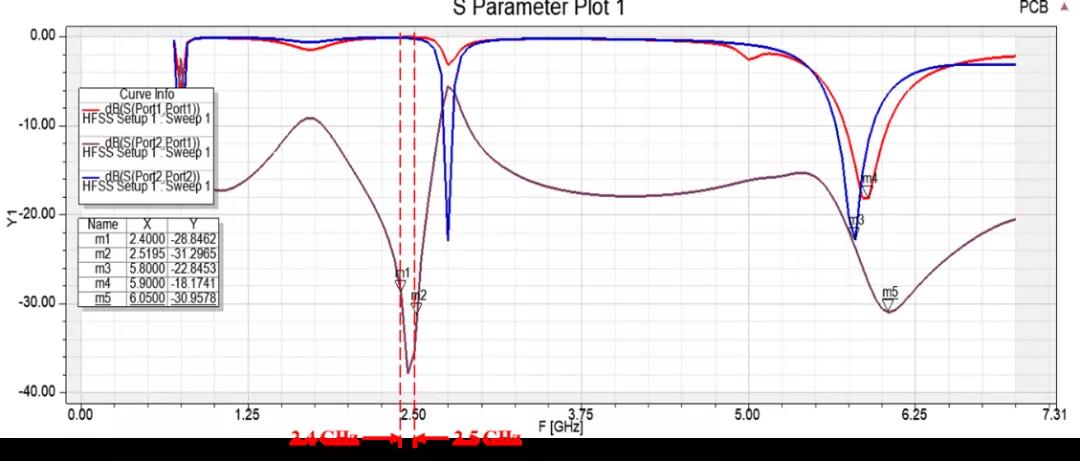

At the same time, radar module of 金年会6766 has done notch processing for the 2.4GHz Bluetooth/wifi frequency band, and the attenuation exceeds 30dB to prevent the Bluetooth/wifi module from causing interference to the radar.
03

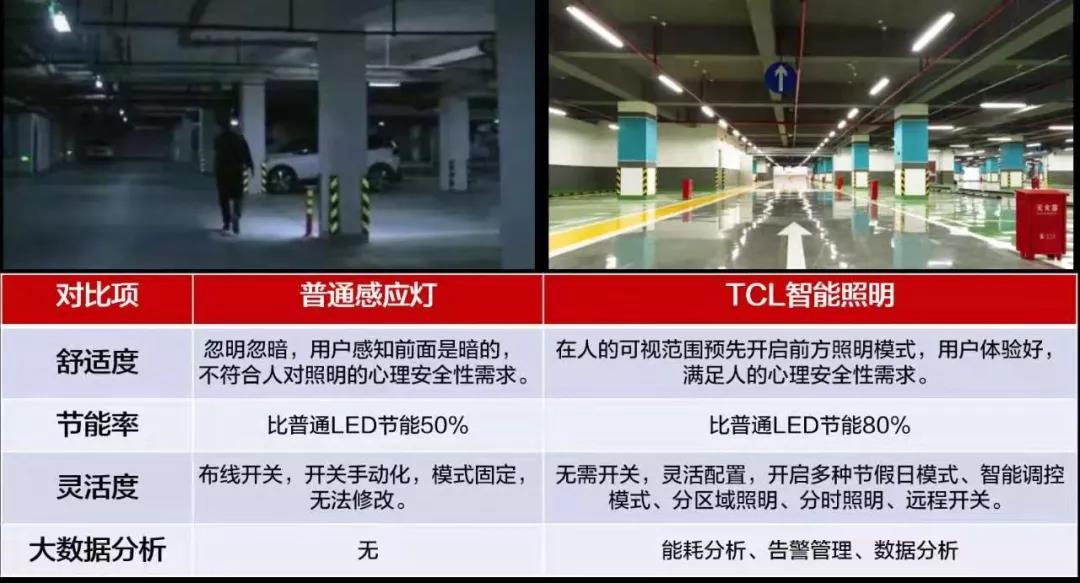

TCL underground parking garage case
having said so much
So how do friends get samples?
01
Airtouch technology radar module sample application:
The sales contact information of Airtouch Technology: James Tan (Tan Hui)
Tel: 13603862355 (same number on WeChat)
Email: tamm@mymf91.com
02

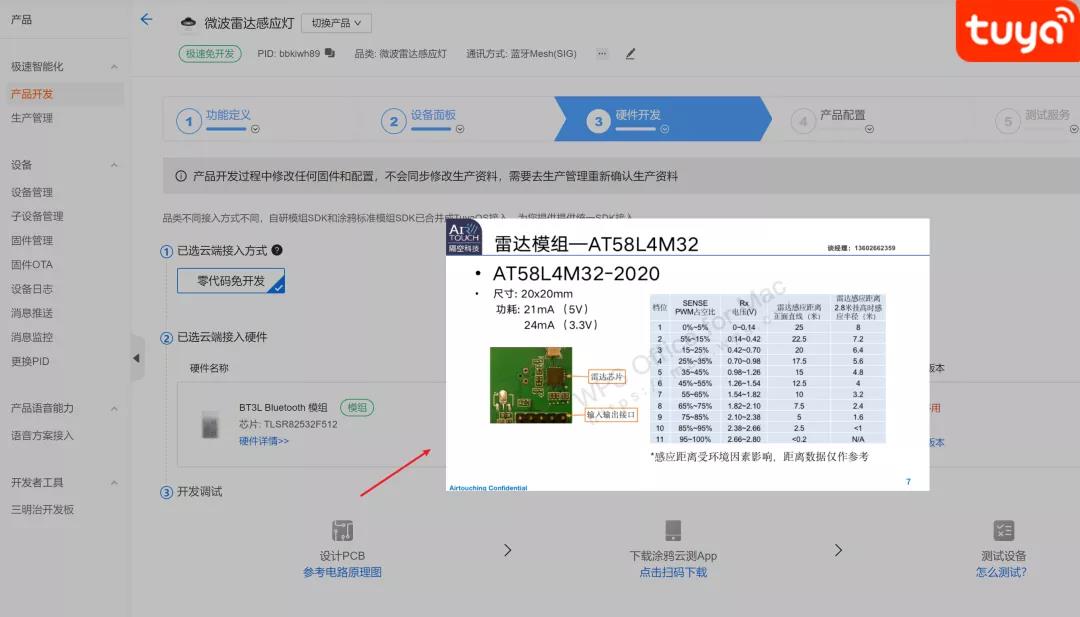

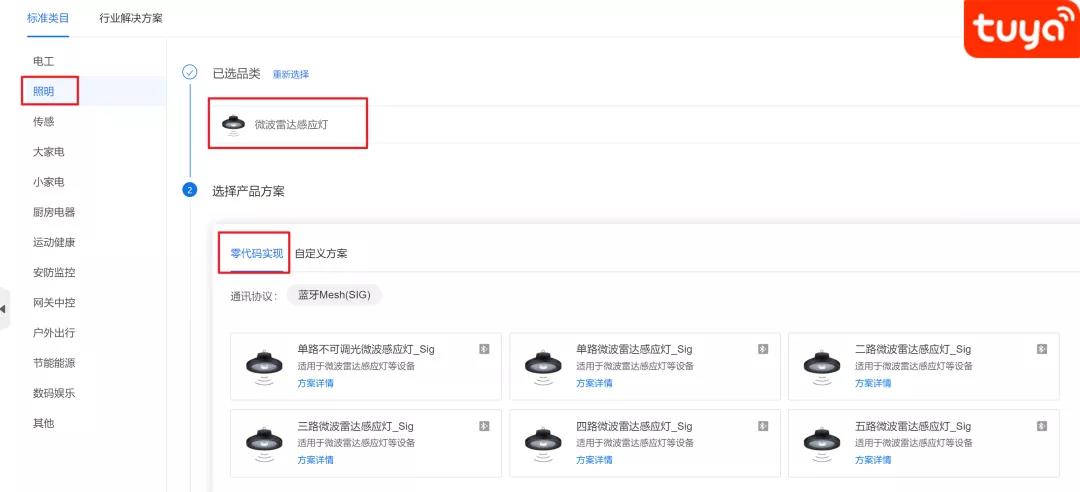

Tuya Bluetooth networking (SIG Mesh) module sample application:
Log in to the Tuya IoT platform: https://iot.tuya.com/
-->Create Product-->Lighting-->Microwave Radar Sensor Light-->Choose 1-5 Sensing Solution-->Apply for Sample
